LST table top center filling one shot depositor

LST-D8 is equipped with double hoppers on the basis of the original table-top chocolate&gummy...

LST table top center filling one shot depositor

LST-D8 is equipped with double hoppers on the basis of the original table-top chocolate&gummy depositor.It is specially made for one-shot depositing of chocolate or gummy or other candies. This depositor usually works with polycarbonate and silicone moulds.
The heated pistons and hopper with up to 110℃ adjustable temperature control to deposit both high and low temperature ingredients.And it allows you to use a wide variety of moulds with it, as the operator can manually position the molds on the dosing nozzles.
Pedal dosing applied, which is specially designed for convenient production and bigger productivity.

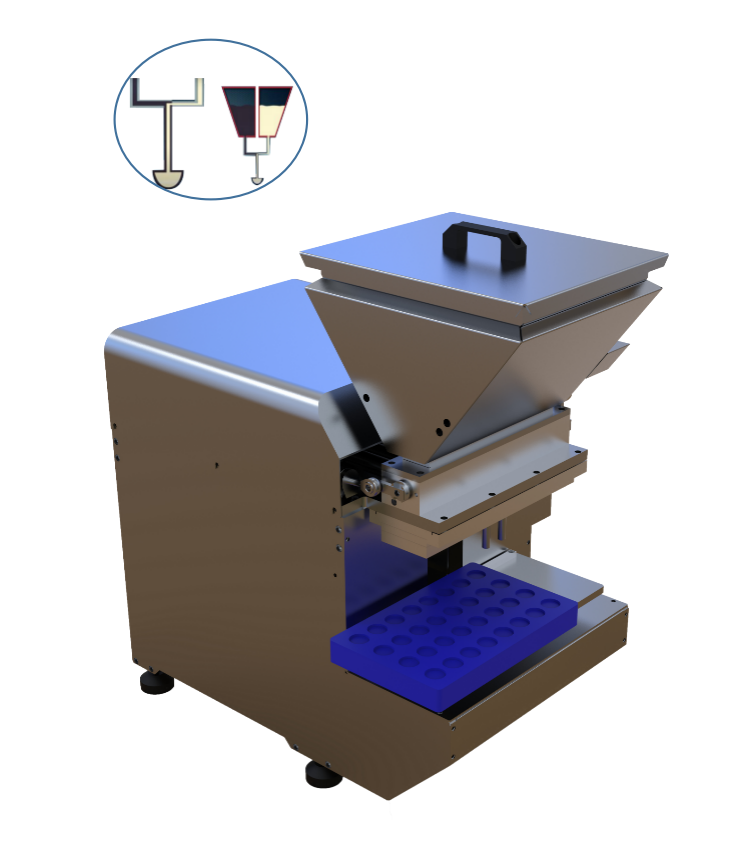

double color depositor

gummy depositor

1. This one shot gummy depositor adopts a compact and  space saving table top design
2.  Two servo motors+two electric cylinders +PLC with touch screen controlled depositing
3. Water or oil heating system and variable temperature control
4. Pallet carrier included(can be customized according to different molds), disassembly without tools to cleaning and CE certified
5. This machine can make gummy as well as chocolate, suggested heat setting:30℃for chocolates, 65℃for gummies

1



Youtube video:

https://youtu.be/e0oyZ4SOg2g



professional chocolate candy machine supplier-LST

whatsapp:008615528001618

email:suzy@lstchocolatemachine.com


Post time: Mar-23-2022
